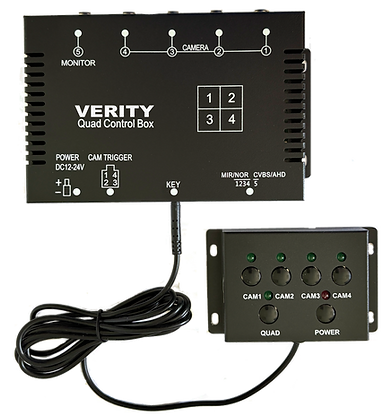

The Verity ADD74 Quad Multiplexer enhances your vehicle's rearview system by enabling seamless switching between up to four camera inputs. This device supports simultaneous audio and video input from all connected cameras, providing comprehensive coverage and flexibility. Users can select from single, dual, triple, or quad image views, with the option to mirror images individually for each camera.
The ADD74 features separate trigger control wires for each camera, as well as a quad trigger wire, allowing for automatic display activation upon receiving a trigger signal. Operating within a voltage range of 12-32V, the ADD74 is designed with short-circuit protection to ensure reliable performance. For more detailed information, please refer to the product flyer.
Specs & Features:
-
Support 4 cameras video simultaneous input
-
Support 4 cameras audio simultaneous input
-
Single, dual, triple, quad image for optional
-
Normal or mirrored picture can be switched separately on each camera
-
Separate trigger control wire on each camera
-
1-Channel split trigger wire
-
1-Channel quad trigger wire
-
Under the display mode, users can set the single view or quad view by the control box.
-
In standby mode, monitor will be on automatically when it's triggered and will switch to the corresponding trigged camera view.
-
Working voltage range is 12-32V with self-protect at short-circuit.
